Frp - Trefoil Cleat And Single Cable Clamps
Frp - Motor Covers, Canopy, Fan Covers & Junction Boxes & Cable Trays
Note :
The Short Circuit Test Report No: Plv/10/Sc/170, Of M/S. Erda, Vadodara, Baroda, Gujarat For Type Test Will Be Provided. For 1 Seconds Peak Value: 105 Ka

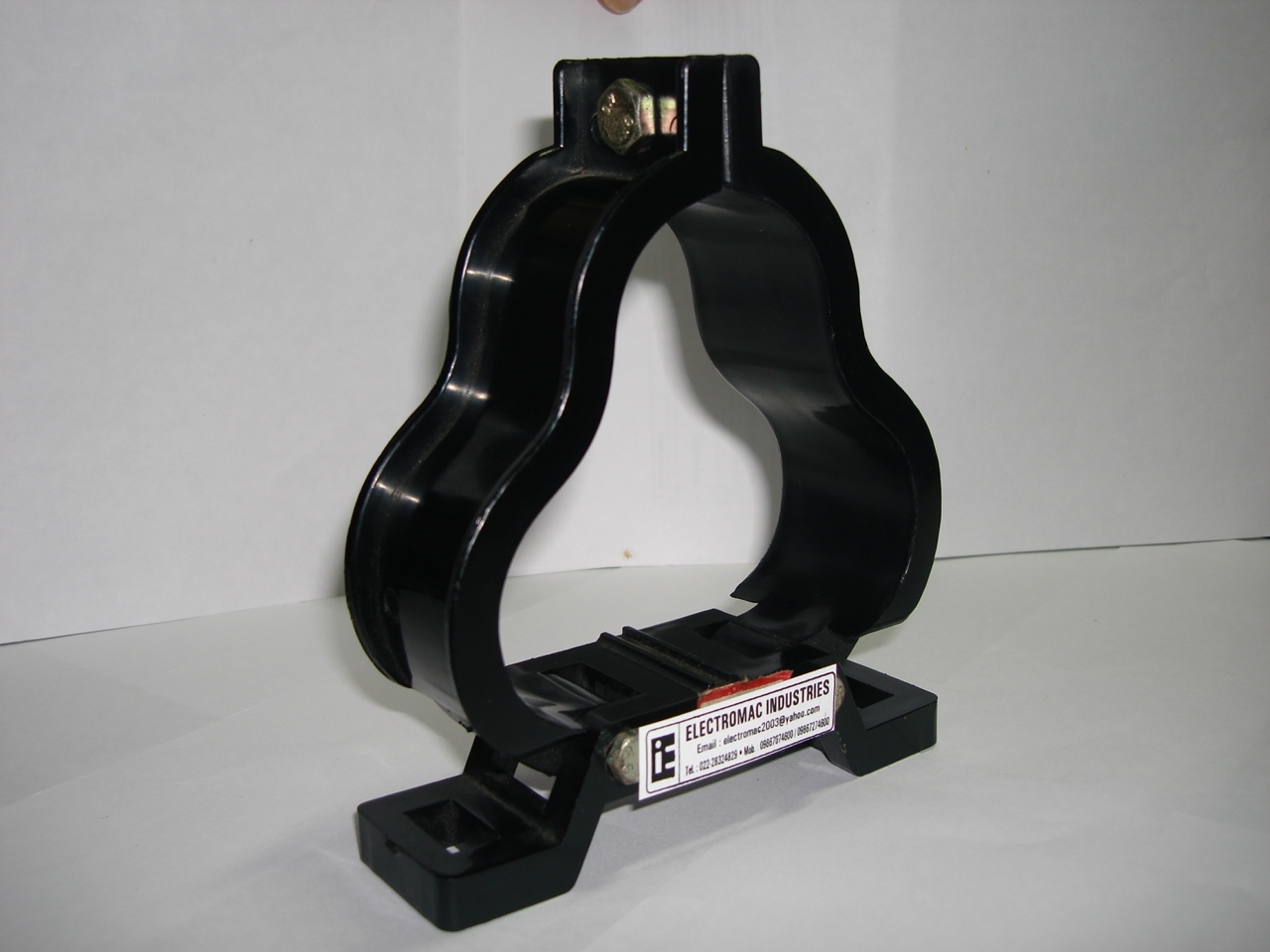

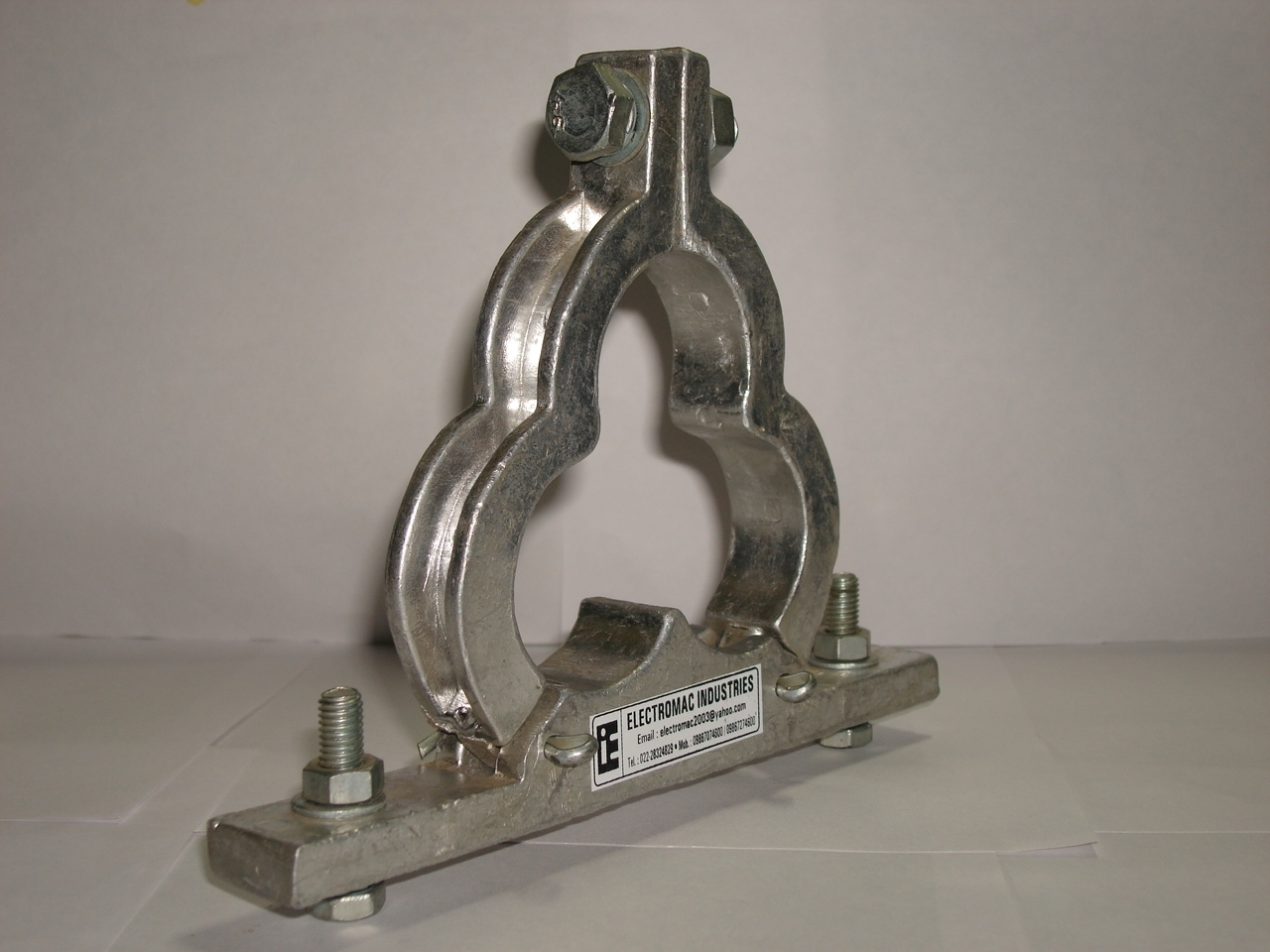

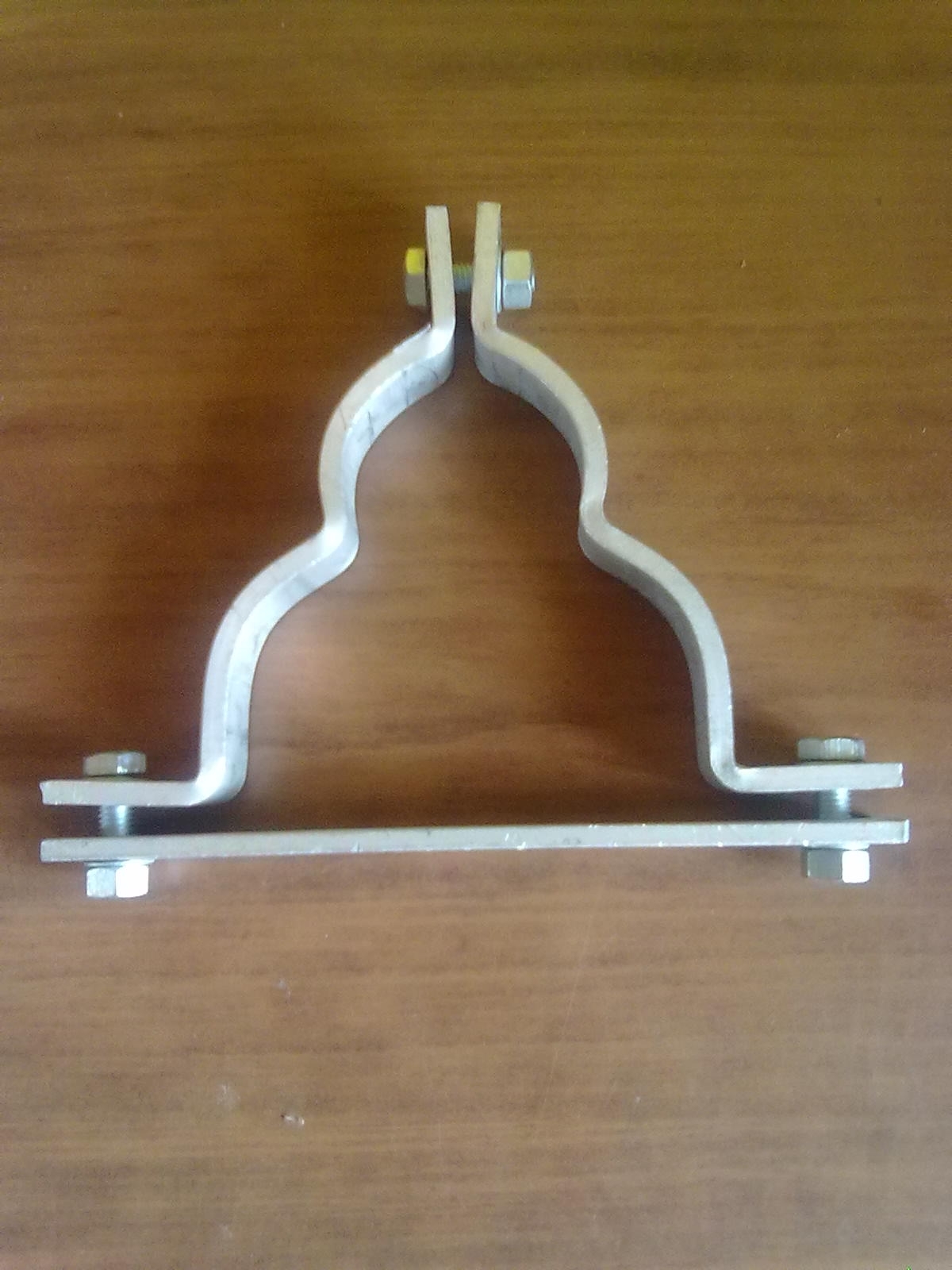

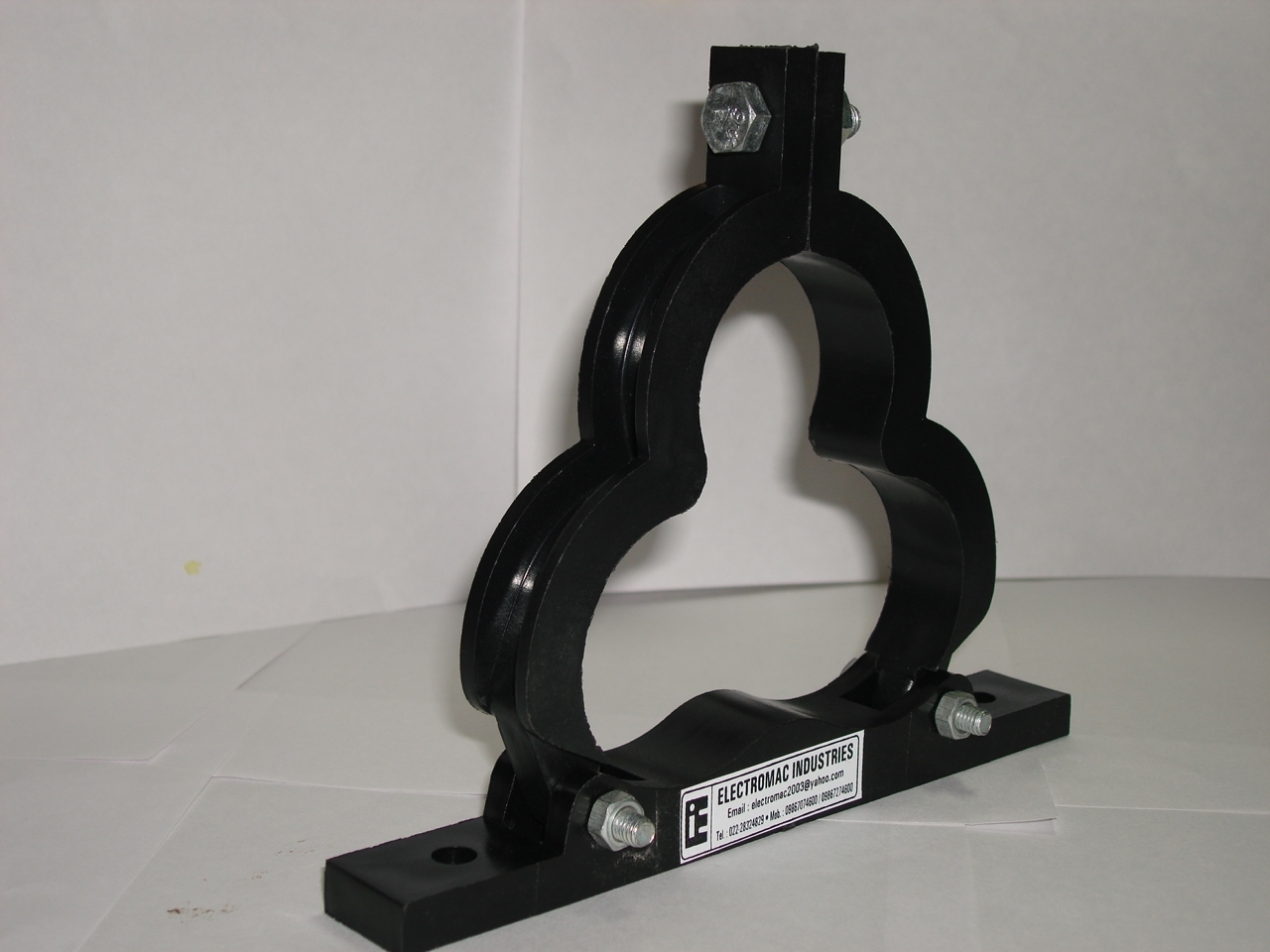

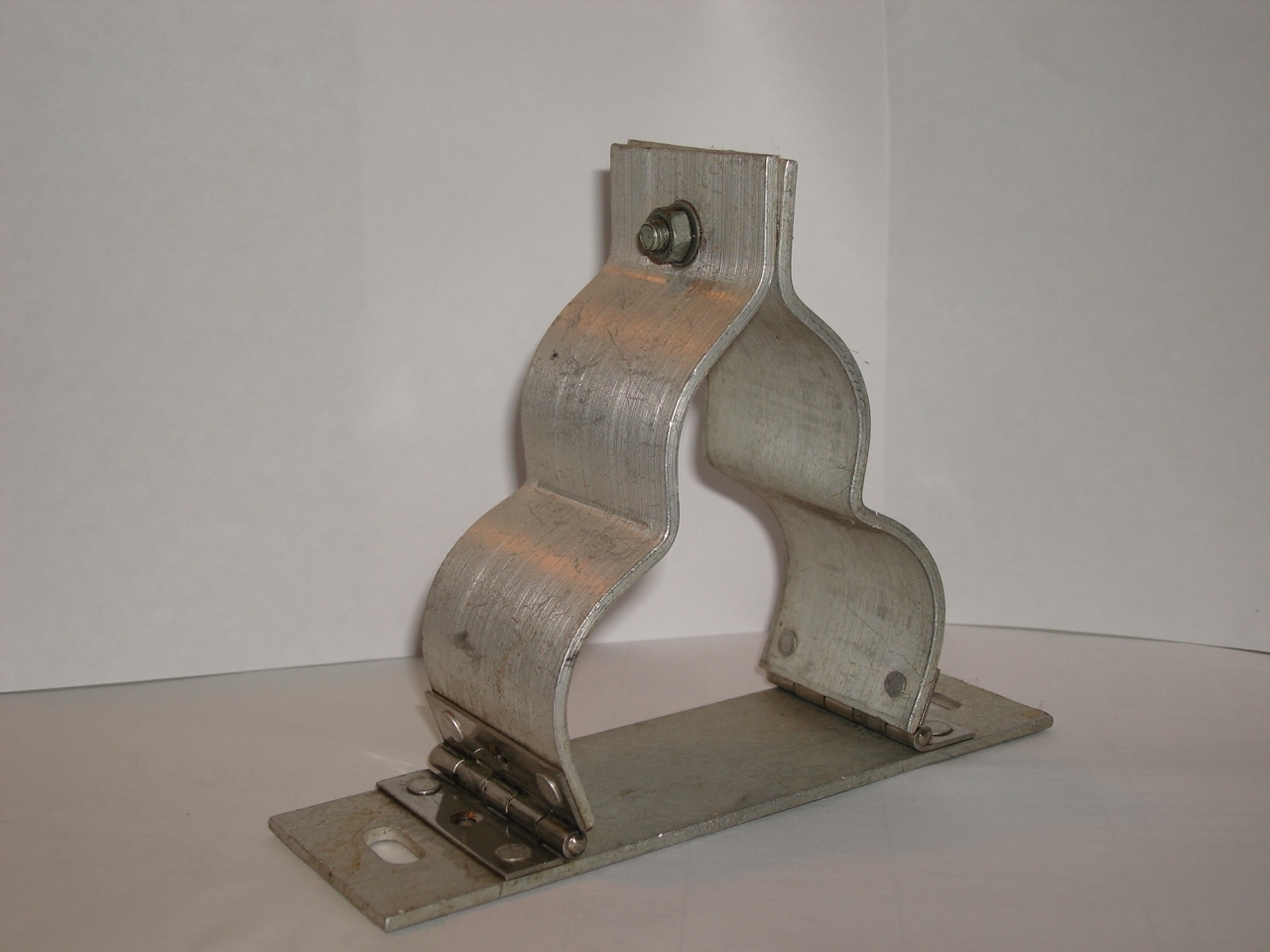

Trefoil Cleat Is Essential For Single Core Cable
Trefoil Cleat Are Used For High Voltage Single Core Cables Where The Current Rating Is High And 3 Core Cables Are Not Available. The Trefoil Cleat Are Used For Laying Single Core Cables In Trefoil Touching Formation Which Helps To Maintain Magnetic Symmetry Thereby Avoiding Electro Magnetic Heating And Loss Of Current. It Does Nullify The Induced Magnetic Field Of High Voltage Power Cable.
The Trefoil Cleat Are Protection Of Power And Control Cable From The Lightning Discharges And Establishment Of Easy Cable Circulation Paths.
Voltages Are Induced In The Sheath Of Cables Running In Parallel Which Result In Circulating Currents Flowing In The Sheaths. The Distances Between Single Core Cables Running In Parallel Determine The Voltages Induced. With Single Core Cables In Trefoil Formation (touching Each Other) The Distances Between The Cables Are Minimum And Thus The Voltages Induced Are Minimized And Hence The Circulating Currents. The Circulating Currents Cause Localized Heating.
Application
Trefoil Cleat Areh Suitable For Supporting Single Core Pvc/ Hrpvc, Xlpe, Xlpe Insulated Aluminum, Un- Armoured, Earth And Un Earth Power Cables From 1.1 Kv To 132 Kv Grade. 3 Phase A.C. Circuits In Trefoil Formation In Generation Stations, Sub-Stations, Thermal Power Stations, Switchgear Plants Etc. These Can Be Used For Indoor Or Outdoor For Vertical Or Horizontal Running Cables Inside Trenches Or On Racks
Specification
Usage/Application |
cable |
Size |
FROM 20MM TO 135MM |
Size/Capacity |
100000 |
Color |
BLACK |
Brand |
ELECTROMAC |
Packaging Size |
Box |
Material |
PVC,NYLON,FRP |
Country of Origin |
Made in India |
